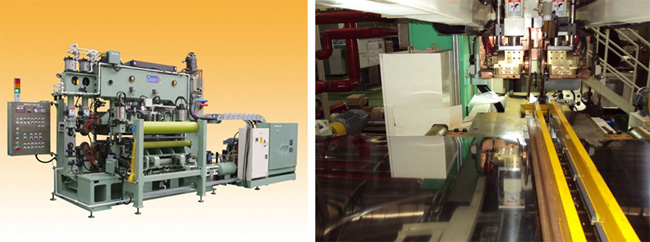

Type |
: MSW-0903 |
| Welding capacity |
: Sheet thickness - 0.2 to 2.5 mm
: Sheet width - 600 to 1570 mm |
| Rated capacity |
: 200 KVA ( 50% duty cycle) |
| Set up value of weld lapping allowance |
: 3-step change over 1.5, 2.0, 2.5 mm |
| Carriage frame system |
: Doubling Housing Type or C-Frame Type |
| Carriage driving system |
: Changeable speed setup system by means of AC geared motor
and inverter controller |
| Shearing system |
: Double guillotine system shearing both ends tail of leading strip
and top of trailing strip at the same time |
| Cross-adjustment |
: ± 75 mm |
| Electrode wheel |
: 210mm dia x 15 mm t , consumption limit 180 mm dia |
| Punching device |
: Incorporated the double cut shear in the welder |
| Cycle time |
: 45 sec ( from stop to run) |
| Utility |
: Welding power source : 440V ±10% three-phase 60 Hz
: Control power : 440V ±40V 3-phase 60 Hz
: Cooling water : temperature - 30 ℃ or less
: Necessary flow - 60 ℓ/min
: Compressed air : pressure - 5.0 to 7.0 ㎏ / ㎠
: flow - 200 ℓ/cycle
: Specification of hydraulic source : pressure - 120 ㎏ / ㎠ |
