ROLL SHOP EQUIPMENT

HR Dechocking Machine

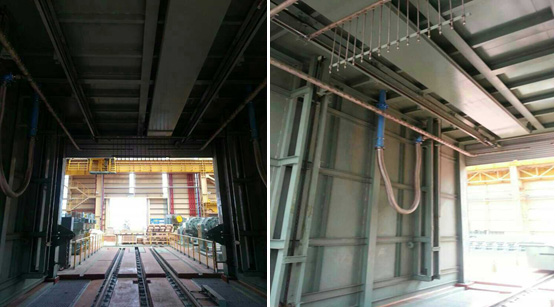

Roll Washing Machine

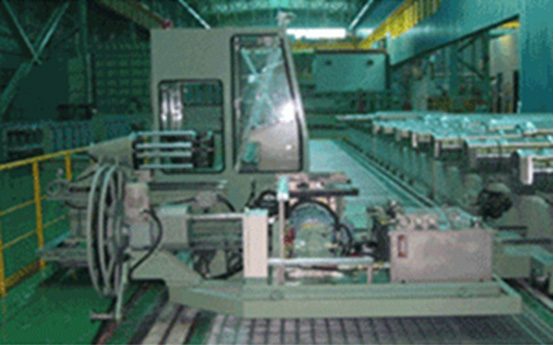

WR & IMR Chock Extractor(single)

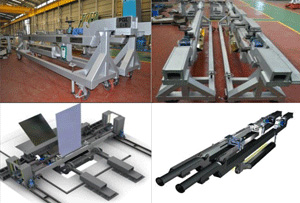

Back Up Roll Chock Extractor



Bearing Washing Machine

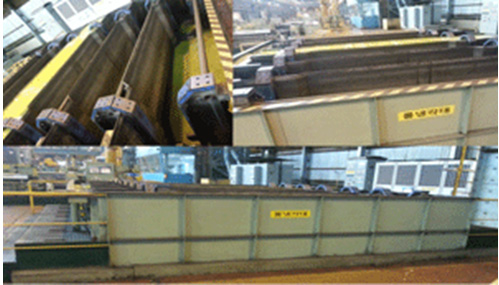

Roll Cooling System

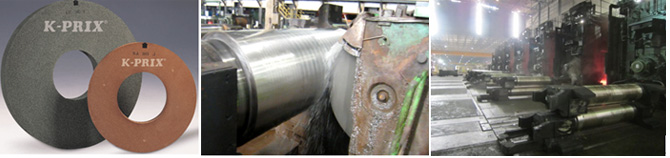

Abrasive  for Roll Repairing


CONTINUOUS ROLLING MILL SYSTEM

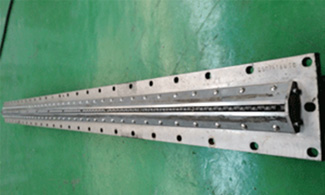

Nozzle for cooling the strips inside  cold rolling CAL furnace
with Head, Chamber , Lip

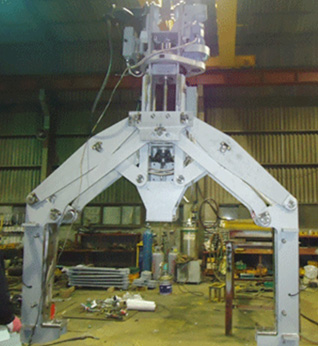

Coil lifter - Move cold rolled or hot rolled coils by lifting
coils



ROLLING OIL, ANTIRUST OIL, FIRE RESISTANT HYDRAULIC OIL, SKINPASS FLUIDS

Rolling Oil Rolling is the fabrication process in which metal substrate is passed through a pair of rolls to
reduce cross-section area or thickness. The fabrication process makes the metal crystal
compact and uniform during process and delivers high performance and fine surface.
Rolling is classified according to temperature of substrate; hot rolling (the temperature is above its
recrystallization temperature) and cold rolling (the temperature is below its recrystallization
temperature).
Anti-rust Oil Anti-rust oil is used to block corrosive substances (such as oxygen, water, etc.) from surface of
substrate or products.
It keeps out contact of oxygen and water from the surface to prevent rust.
Fire Resistant Hydraulic Oil Fatty Acid Ester Type (FE-SERIES)
  • With use of synthetic esters (vegetable) as base oil, these products shows high
    bio-degradable property (Eco-mark certified) and high abrasion resistance and high purity
    ; suitable for high pressure hydraulic system with servo valves.
Water-Glycol Type (WG-SERIES)
  • Water-glycol fire-resistant hydraulic fluid shows high rust resistance, corrosion resistance,
    low temperature fluidity
    ;suitable for hydraulic systems with higher risk of fire, e.g. equipment for iron manufacturing, steel manufacturing, etc.
Skin Pass Skin pass is using for immprovement of the mechanical properties , the strip surface
appearance(High Quality), Shape correction and Protection the trouble by a Roll affix in the
Skinpass line


GALVANINIG LINE(Pot Facility)


■ Air Knife System


It will transfer CR Roll to Zinc Pot and control the Zinc coating weight to have elaborate and consistent coating
thickness With Air Knife, Cooling Tower, Vibration Controller, Pot Roll, Positioner,Dust collector


1.Specification
  • Coating Weight Range
    - GI :60~600g/㎡ (Both Sides)
    - GA:60~180g/㎡ (Both Sides)
  • Lip Length : 2,200mm
  • Lip Gap Range : 1.0~1.5mm
  • Air Pressure Control : 5~80Kpa
2.Features
  • Improved the fluid flow problem
  • Rapid responsiveness
  • Improved inferior attachability of zinc by the TiN Coating treatment on the LIP
    surface
  • The pressure difference in the width at the end of nozzle: Less than 2%
  • Turbulence flow: Less than 0.5%

■ Pot Roll


1.Specification
  • All-in-one-type U-frame
  • 3 roll system( Sink roll, stabilizing roll, and correcting roll)
  • Scraper system
  • Pre-heating Furnace
2.Features
  • Extends the lifespan of Sleeve & Bush due to the decrease in Roll vibration
  • Improves the coating quality for the Strip
