| ■ Tuyere Nozzle |
|
| - Conventional Single/Double Chamber Tuyere |
 |
| |
Product Specification
Cu Composition:99.7% min
Electrical Conductivity : 80% I.A.C.S min. |
| |
| - Spiral Tuyere |
 |
| |
Product Specification
Nose - Cu Composition:99.9% min
Electrical Conductivity:80% I.A.C.S min.
Body - Cu Composition:99.5% min
Electrical Conductivity:60% I.A.C.S min. |
| |
To withstand the high temperature of hot blast(approx. 1300℃) in blast furnaces.
tuyere nozzles are cast with high purity copper. |
| |
| ■ Tuyere Cooler |
|
| - Tuyere Cooler |
 |
| |
Product Specification
Cu Composition:99.5% min
Electrical Conductivity :60% I.A.C.S min. |
| |
| Tuyere coolers serve as the holder of tuyere nozzles, and are also made of high purity copper. |
| | |
|
| ■ Cooling Plate |
|
| - Cooling Plate |
 |
| |
Product Specification
Cu Composition:99.5% min
Electrical Conductivity :60% I.A.C.S min. |
| |

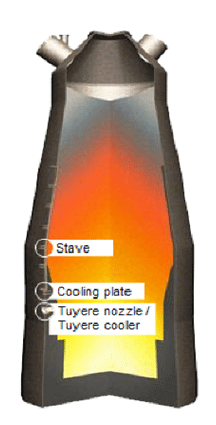

Cooling Plate cool refractory linings which determine the
campaign life of a blast furnace. |
| |
| ■ Copper Stave |
|
| - Copper Stave |
 |
| |
Product Specification
Cu Composition:99.96% min
Electrical Conductivity :100% I.A.C.S min. |
| |
Copper staves serve the same purpose as that of cooling plates, but are more effective in cooling efficiency and
allows larger working volume. |
| |
| ■ Valve Disk |
|
| - Valve Disk |
 |
| |
 |
| |
Product Specification
Cu Composition:99.5% min
Electrical Conductivity :50% I.A.C.S min. |
| |
| Valve disk. controls the flow rate of the hot blast. |
| | |
